安科瑞导轨式直流电表在韩国充电桩企业的应用

 Acrel Din Rail Dc Power Meter Applicated In Korea Charging Pile Company

安科瑞 周莉娜

摘要：电动汽车，一直被看做是下一代汽车的发展趋势。作为电动汽车的“加油站”，充电桩建设的全方面开展，无疑会提供巨大的市场。同时，成品油价格上涨速度高于下降速度，终车主承受的是越来越高的油价，电动车可以代替部分汽油柴油的消耗，降低了这部分成本。毋庸置疑充电桩是新能源战略推进的终端市场，如能在现在抢占先机，对资本的盈利有较大好处。

Abstract: Electric Vehicles have been regarded as the development trend of the next generation of vehicles. As the "station" of electric vehicles, the comprehensive development of charging pile construction will provide a huge market. At the same time, the price of refined oil rises faster than it falls, so the car owners will bear higher and higher oil prices. Electric vehicles can replace part of the consumption of gasoline and diesel, reducing this part of the cost. There is no doubt that the charging pile is the terminal market promoted by the new energy strategy. If we can seize the opportunity now, it will be of great benefit.

1.市场概述 Market Overview

由于电动汽车每天需要补充大量电能，经营充电站就可以获得巨大的充电服务收益。相对于加油站，电能比较安全和方便，可在各地大量安装设置充电站。根据投资规模，小到社区慢速充电桩，大到公路快速充电站，单站经营，组网经营均可。

As electric vehicles need to supplement a large amount of power every day, the operation of charging station can obtain huge charging service revenue. Compared with the gas station, the power is more safe and convenient, and a large number of charging stations can be installed in various places. According to the scale of investment, from small to community slow charging pile, to highway fast charging station, single station operation, network operation also can be.

2.DJSF1352直流电测仪表介绍 DJSF1352 DC Power Meter Introduction

DJSF1352-RN导轨式直流电能表带有双路直流输入，主要针对直流充电桩应用场合而设计，该系列仪表可测量直流系统中的电压、电流、功率以及正反向电能等。在实际使用现场，即可计量总电能，又可计量规定时间段内的电能。检测的结果既可用于本地显示，又能与工控设备、计算机连接，组成测控系统。仪表可具有红外通讯接口和RS-485通讯接口，同时支持Modbus-RTU协议；可带继电器报警输出和开关量输入功能；根据不同要求，通过仪表面板按键，对变比、报警、通讯进行设置；具有开关量事件记录（Modbus协议）电压电流功率大值、小值记录功能。

DJSF1352 has double DC input channels, mainly designed for DC charging piles, solar , this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system.

The meter can have infrared communication interface and RS-485 communication interface, and

supports Modbus-RTU protocol .The meter can have relay alarm output and digital input function;You can set the ratio, alarm, and communication through the meter panel keys according to different requirements.The meter can have event recording of switch (Modbus protocol), maximum and minimum value recording function of voltage and current power.

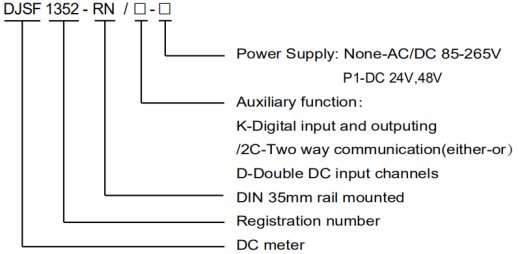

3.型号说明 Model Description

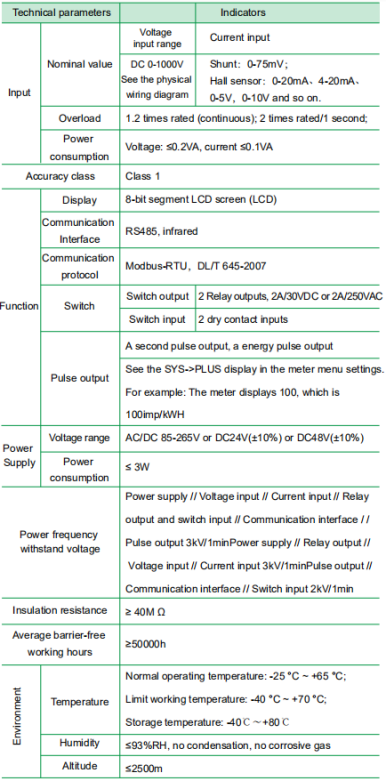

4.技术参数 Technical Features

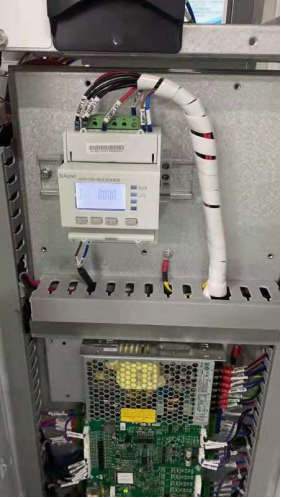

5.安装图片 Installation Picture

6.总结 Summary

充电桩作为新能源汽车产业链的重要下游支柱行业，其市场化前景似乎相当乐观。目前行业前景被一致看好，安科瑞直流电能仪表可以完好解决充电桩计量问题。

As an important downstream pillar industry of new energy vehicle industry chain, charging pile seems to have a very optimistic market prospect. At present, the prospect of the industry is unanimously optimistic, and Acrel DC power meter can perfectly solve the problem of charging pile measurement.

参考文献 Bibliography

1.Solutions For Enterprise Micro-grid System 2020.02
