安科瑞多功能仪表和网关在中国香港某项目的应用

 Application of Acrel Power Meter&Smart Gateway in Hongkong

安科瑞 周莉娜

摘要：本文介绍了安科瑞多功能电能表在中国香港某项目的应用。APM系列交流多功能仪表是一款专门为电力系统、工矿企业、公用事业和智能建筑用于电力监控而设计的智能电表。

Abstract：This article introduces the application of the IoT power meter in a project in Hongkong.APM series power meter is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings.

1.项目概述  Project Overview

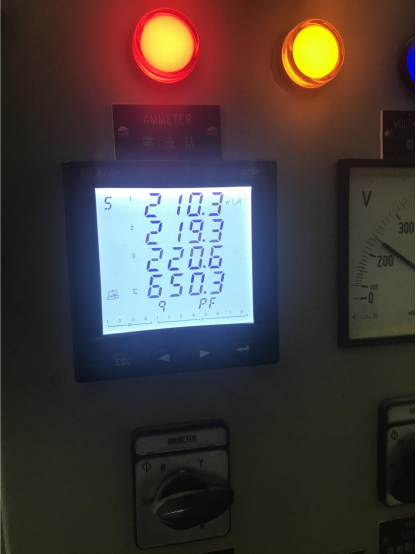

中国香港某项目需要一批物联网电力仪表且具备远程抄表功能更换原先的指针表，经推荐我司APM810多功能仪表和AWT100/4GH网关以及物联网平台。中国香港客户多方面对比后，认可我们的仪表安装方便，功能强大，且结合我们的网关(AWT系列)，具备远程抄表功能，客户通过手机APP或网页登录即可随时随地监控用电情况。

A project in Hong Kong requires a batch of Internet of Things power meters with remotely reading function to replace the original pointer meter. We have recommended our APM810 multi-function power meter, AWT100/4GHW gateway and IoT Cloud Platform.After comparing in various aspects, Hong Kong customer recognize that our power meter is convenient to install with rich functions.Using with our gateway(AWT series), it could connect with our IoT Cloud Platform and check the data remotely. Customers can monitor the electricity situation anytime and anywhere through mobile phone APP or web login.

2.产品介绍 Product Presentation

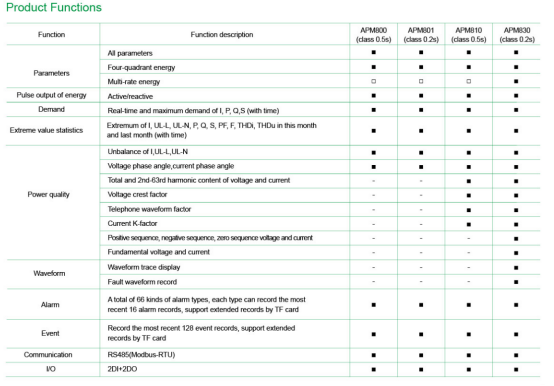

   APM系列网络电力仪表具有全电参量测量，例如三相电流，电压，有源电源，无功功率，表观功率，频率，功率因数。它还有电能统计，事件记录，谐波测量及网络通讯等功能。

APM series meters integrate measurement of full electric parameters, such as three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor. It also has functions of energy statistics, event record,harmonic measurement.

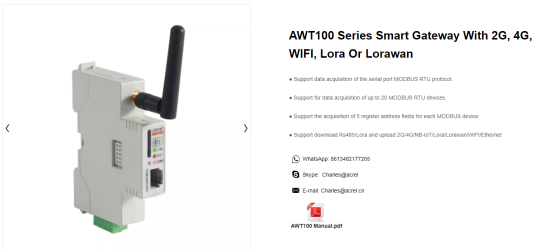

AWT100数据转换模块是由acrel电气公司推出的一个新的数据转换DTU。通信数据转换包括2G、4G、NB、LoRa、LoRaWAN、GPS、WiFi、CE、DP等通信方法。下行接口提供了一个标准的RS485数据接口。方便连接电表、rtu、plc、工业计算机等设备，一次只需完成初始配置即可完成MODBUS设备的数据采集；同时，AWT100系列无线通信终端使用强大的微处理芯片配合内置看门技术，性能可靠稳定。

AWT100 data conversion module is a new data conversion DTU launched by Acrel Electric. Communication data conversion includes 2G, 4G, NB, LoRa, LoRaWAN, GPS, WiFi, CE, DP and other communication methods. The downlink interface provides a standard RS485 data interface. It can be easily connected to power meters, RTUs, PLCs, industrial computers and other equipment, and only needs to complete the initial configuration at a time to complete the data collection of the MODBUS equipment; at the same time, the AWT100 series of wireless communication terminals use powerful micro-processing chips to cooperate Built-in watchdog technology, reliable and stable performance.

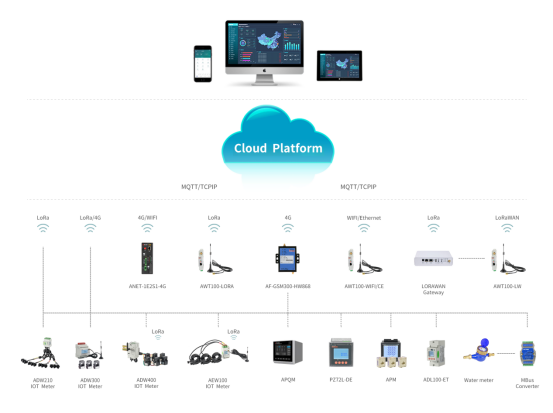

3.组网拓扑图 Network Topology
