安科瑞无线测温产品在南京禄口国际机场项目的应用

 Acrel Wireless Temperature Monitoring Application in Nanjing Lukou International Airport

安科瑞 周莉娜

摘要： 高压开关柜在运行过程中，柜内触点与母线连接处、动静触头电路发热过大，易引发停电和火灾事故。因此，高压开关柜内温度监测尤其是三相触点温度监测非常重要。高压设备存在裸露电压，传统的有线温度检测方法因无法完全解决高压绝缘问题而不能应用。无线测温系统采用无线电波进行信息传输，不需要布线，与高压设备等电势，不需要采取绝缘措施。因而无线测温系统可解决高压设备测温难题。

Abstract: During the operation of the high-voltage switchgears, The contact in the cabinet and the bus connection, the dynamic and static contact circuit generates too heat, which is easy to cause power failure and fire accident. Therefore, the temperature monitoring is very important in the high-voltage switch cabinet, especially the three-phase contact temperature monitoring. The traditional wired temperature measurement method can not be used because of the exposed voltage of high voltage equipment. The wireless temperature measurement system uses radio waves, no wiring, equal potential with high-voltage equipment, and no insulation measures. Therefore, the wireless temperature measurement system can solve the temperature measurement problem of high-voltage equipment.

关键词：高压开关柜，无线测温系统

Keywords: high-voltage switchgears，Wireless Temperature Monitoring System

0.项目概述：Project Overview

 本项目为南京禄口国际机场T1航站楼改扩建场外供配电工程，需要配置无线测温产品，实现对柜内断路器的温升监测。传感器工作环境温度满足-40℃到+120℃需求。选择我司ATE300型CT感应取电式传感器。并且采用ATC400收发器连接后台系统。

This project is the expansion project of the T1 terminal of Nanjing Lukou International Airport. It needs to be equipped with wireless temperature measurement products to realize the temperature rise monitoring of the circuit breakers in the cabinet.The working environment temperature of the sensor meets the requirement of -40℃ to +120℃. Choose ATE300 type CT inductive powered temperature sensor. And choose the ATC400 transceiver to connect to the background system.

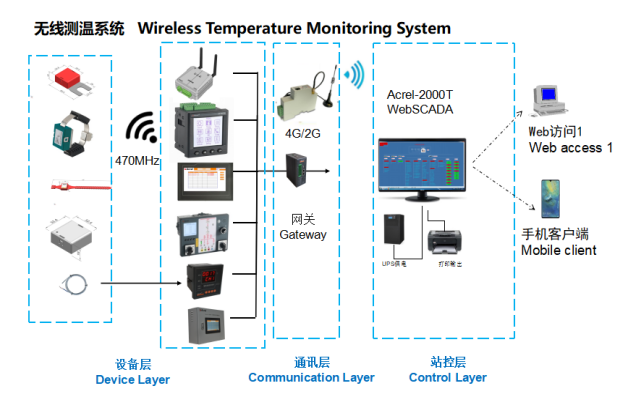

1.无线测温系统介绍

Wireless Temperature Monitoring System Introduction

无线测温系统适用于3-35kV室内开关柜，包括内置开关柜，手推车开关柜，固定开关柜和环网开关柜。 它也适用于0.4kV低压开关设备，例如固定开关设备和抽屉式开关设备。Wireless Temperature Monitoring System is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.

2.无线测温配置方案

Wireless Temperature Monitoring Configuration Scheme

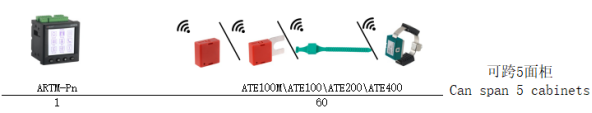

1）高低压柜内电气接点无线测温

     Wireless temperature monitoring of contacts in high and low voltage cabinets

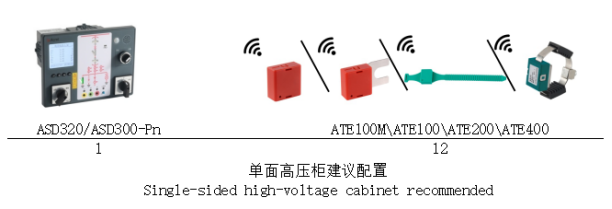

2）高压柜内电气接点无线测温带操显功能（单柜就地显示）

  Wireless temperature monitoring with operation and display function for contacts in high-voltage cabinets (single cabinet local display)

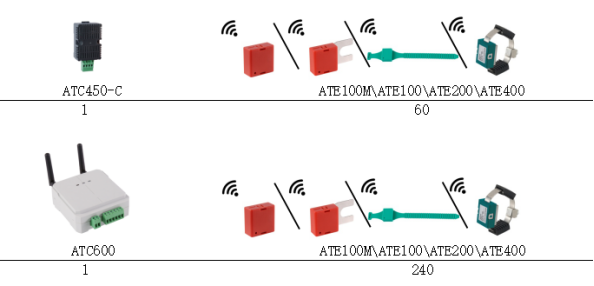

3）高低压柜内电气接点无线测温（不需要就地显示）

  Wireless temperature monitoring of contacts in high and low voltage cabinets (no local display )

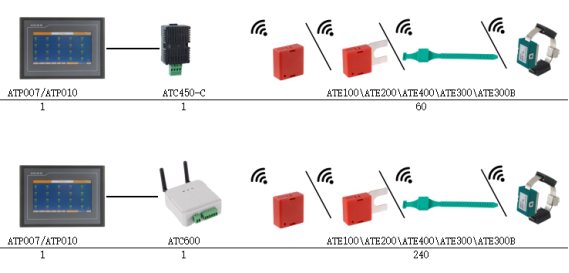

4）高低压柜内电气接点无线测温（集中就地显示）

 Wireless temperature monitoring of contacts in high and low voltage cabinets（Centralized local display）

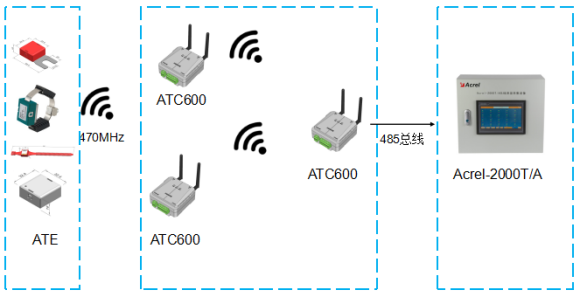

5）就地壁挂式集中显示方案

Local wall-mounted centralized display solution

3.无线测温产品介绍

Introduction of wireless temperature measuring product

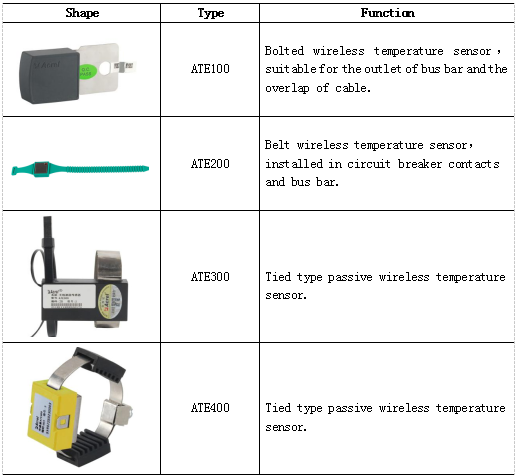

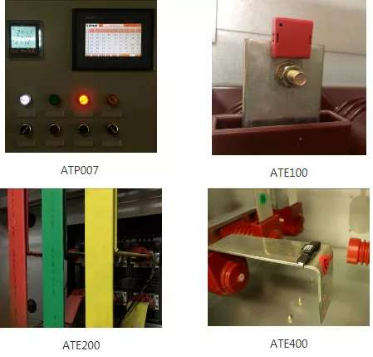

①无线温度传感器

wireless temperature sensor

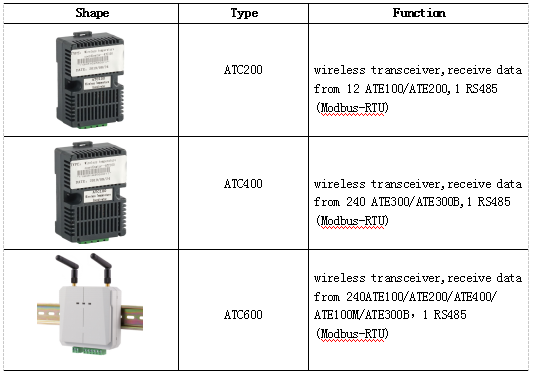

②无线收发器

wireless transceiver

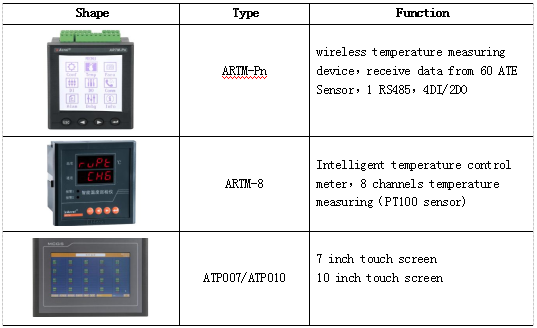

③显示终端

Display terminal

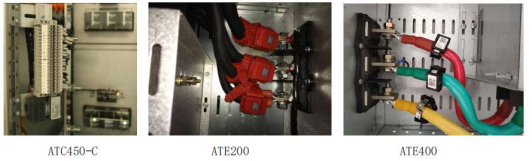

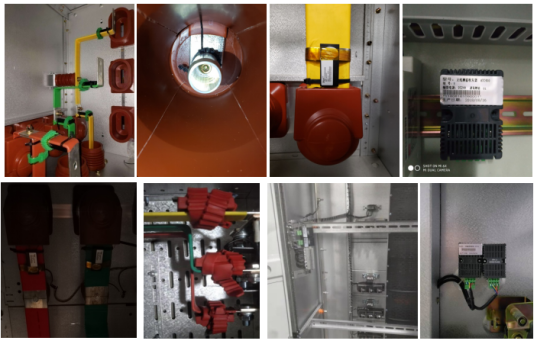

4.现场图片 On site Photos

5.参考文献Bibliography

1.Solutions For Enterprise Micro-grid System 2020.02
