安科瑞智能操控装置在上海特斯拉工厂配电工程的应用
Application of Acrel Smart Control Device in Shanghai Tesla Factory Distribution Project
安科瑞 周莉娜
0.背景 Background
2018年10月17日，上海市临港管委会表示，特斯拉（上海）有限公司已成功摘得上海临港装备产业区Q01-05地块864885平方米（合计1297.32亩）的工业用地。2019年1月7日，位于上海东南一角的两港西大道与正嘉路交叉口，特斯拉工厂一期宣布开工建设。按照规划，该工厂一期年产能为25万辆纯电动整车，包括Model 3等系列车型。2019年3月，特斯拉工厂一期工程建设敲定上海本土建设企业——上海建工集团。特斯拉工厂是上海的外资制造业项目，也是特斯拉在美国之外的工厂，2019年1月开工建设。
October 17th, 2018, Shanghai Lin-Gang management committee confirmed the Tesla (Shanghai) Co., LTD has successfully won the land mass Q01-05 l, 864885 m² of industrial land. On January 7th, 2019, first step construction of Tesla factory was announced at the intersection of LiangGang West Avenue and ZhengJia Road, located in the southeast corner of Shanghai. The plant is scheduled to have an annual capacity of 250, 000 electric vehicles at the first step, including models such as the Model 3. In March 2019, the first step of Tesla factory construction was finalized as Shanghai Construction Engineering Group, a local construction company in Shanghai. The Shanghai factory is Tesla's another factory besides the United States and will start construction in January 2019.
1.概述 Overview
本项目为特斯拉上海临港工厂二期工程,该项目配电工程有3个配电房，包括能源中心C2，联合厂房4以及变电站进线隔离柜，共60面10kV高压柜。
This project is the second step of Tesla's Shanghai Lingang Factory. This project includes 3 distribution rooms, including energy center C2, union workshop 4 and substation incoming isolation cabinets, with totally 60 sets of 10kV high voltage cabinets.
2.产品方案 Product Solution
2.1 产品需求 Product requirements
本次针对特斯拉上海临港工厂二期工程，需要配置智能操控装置，对厂区内配电工程中所有高压柜状态进行的监测。该项目的要求如下：
1）一次动态模拟图，带电显示及闭锁；
2）温湿度数字控制，数码管显示；
3）分合闸、储能、远方/就地开关；
4）语音提示，人体感应；
5）柜内照明操作；
6）RS485/Modbus 通讯。
根据上述要求，故此选择安科瑞ASD200智能操控装置。安科瑞ASD200智能操控装置外形结构如下：
For the project of Tesla Shanghai Lingang factory, smart control device is required to monitor the state of all high-voltage cabinets in the power distribution cabinet in the distribution room. The requirements of the project are as follows:
1) A dynamic simulation diagram, electrical display and blocking;
2) Temperature and humidity control, LED display;
3) Switch on and off, energy storage, remote/local switch;
4) Voice prompt and human body induction;
5) Lighting operation in the cabinet;
RS485/ Modbus communication.
In order to meet the above requirements, we choose ASD200 smart control device. The external structure of Acrel ASD200 intelligent control device is as foll
2.2 产品方案 Project solution

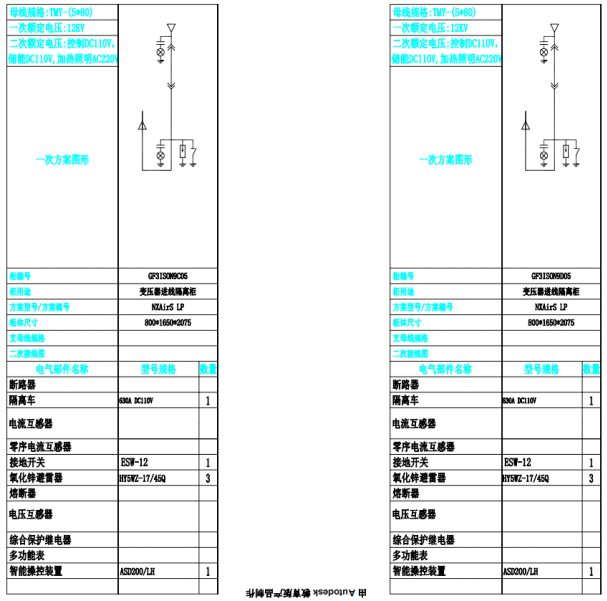

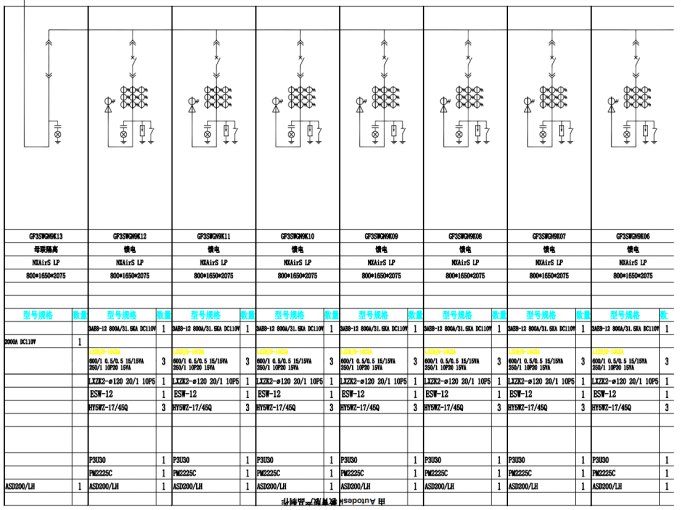

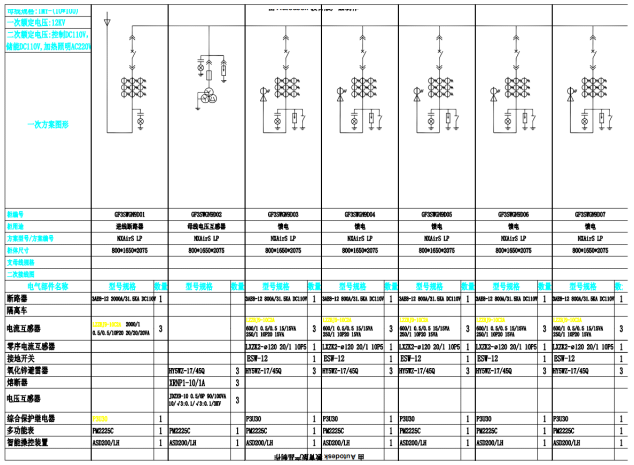

针对该项目的3个配电房包括能源中心C2，联合厂房4以及变电站进线隔离柜，共60面10kV高压柜，以部分10kV高压配电柜为例，智能操控的产品上图如下：
For the 3 distribution rooms of the project, including energy center C2, joint workshop 4 and substation incoming isolation cabinets, there are totally 60 sets 10kV high voltage cabinets. Taking part of 10kV high voltage distribution cabinets as example, the products smart control device are shown in the figure below:
2.3 产品明细 Product detail

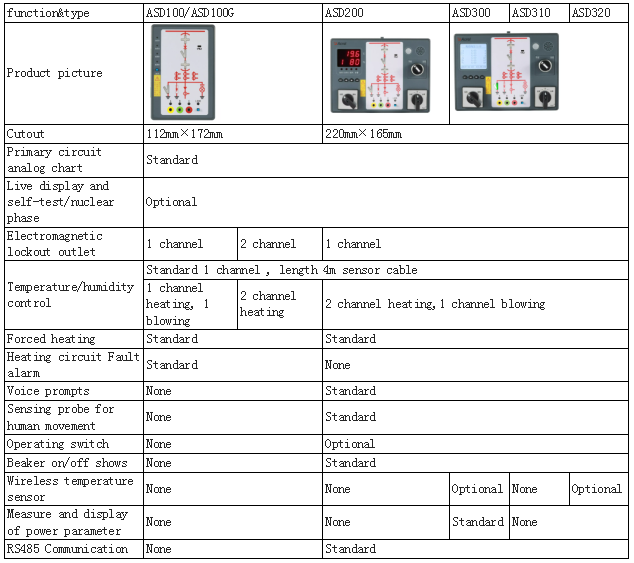

本次特斯拉工程使用智能操控装置ASD200共计60只。产品介绍如下:
The smart control device ASD200 is used in this Tesla project, totaling 60 pcs. The product introduction is shown in the table below.
3.其他相关产品 Other Related Products

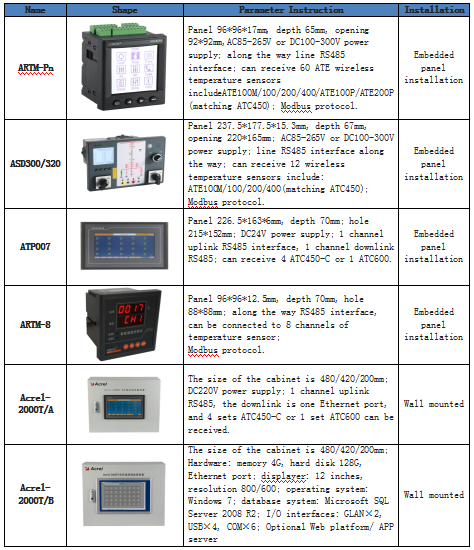

针对大型的生产型企业的配电工程，为了提供供电的安全性和可靠性，安科瑞还推出了开关柜内电气连接点温度监测产品，可以实时监测柜内铜排、电缆、断路器梅花触头等电气连接部位的温度情况，方便整个配电室的运行维护。以下为开关柜电气节点测温类产品的选型方案。
For large production enterprise power distribution project, in order to provide the safety and reliability of power supply, Acrel also launched the switchgear electrical connection point temperature monitoring products, you can real-time monitor copper platoon, cable, contained in the circuit breaker plum touch the top temperature of the electrical connection, convenient operation maintenance of the entire transformer room. The following is the selection scheme of electrical node temperature measurement products of switch cabinet.
4.结束语 Summary
本文介绍的安科瑞智能操控产品在特斯拉上海临港工厂二期工程的应用，针对高压开关柜内的综合测控，且该装置广泛用于电厂、电力系统配网、工厂及建筑等领域。智能操控装置可替代带电显示仪、温湿度控制器、开关位置信号灯、控制开关（按钮）、模拟牌及电测仪表等传统二次元件，使开关柜盘面整洁、美观，易于调试维护，实现集操作、显示于一体。
This article introduces the application of Acrel smart control products in project of Tesla Shanghai Lingang factory, aiming at the integrated measurement and control in the high-voltage switch cabinet, and the device is widely used in power plant, power system distribution network, factory and construction and other fields. Smart control device can replace live display instrument, temperature and humidity controller, switch position signal lamp, control switch (button), analog plate and electrical measuring instrument and other traditional secondary components, so that the switch cabinet disk clean, beautiful, easy to debug and maintain, to achieve operation and display in one.
参考文献 Bibliography
1.Solutions for enterprise micro-grid system
